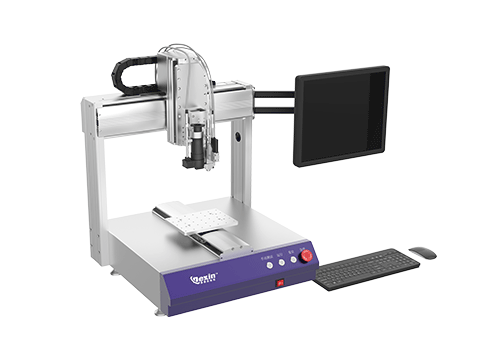

visionServo dispensing machine

model: DEX-430SD

Processing range: 400 * 300 * 100mm快盈VIII

Maximum speed: 800mm/sec (XY)/200mm/sec (z)

Operating System: Windows 7快盈VIII

Transmission mode: servo motor/grinding screw

Working voltage: AC220V/50-60HZ/1.5KW快盈VIII

Dimensions: 966 * 601 * 744mm快盈VIII

Working environment: temperature 10-40 ℃/humidity 20-90% no conditioning

Glue dispensing accuracy: ± 2%

Glue line width: 0.3-0.6mm (different line widths can be achieved according to different nozzle configurations)快盈VIII

Introduction to non-contact jet dispensing valve:快盈VIII

Non contact jet dispensing valve, suitable for various fluids, provides high-speed, high-precision, and highly flexible dispensing processes, and can be widely used in fields such as electronics, semiconductor packaging, solid-state lighting, new energy, and life sciences.

Features and advantages:快盈VIII

1. High speed dispensing does not require the Z-axis movement necessary for traditional needle dispensing processes, and the dispensing speed is more than three times that of needle dispensing快盈VIII

2. The minimum dispensing volume for high-precision dispensing can reach 5 nanoliters, and the minimum dispensing point diameter can be controlled to 0.2mm, with consistency that traditional needle dispensing cannot achieve.

3. High flexibility is insensitive to dispensing height, which can avoid adverse effects caused by needle collision with workpieces; The extremely small amount of glue allows the DEX-430SD to operate in a more compact space, completing dispensing processes that needle dispensing cannot achieve.

4. Low maintenance, high lifespan, advanced structural design, simple and easy daily cleaning and maintenance. The most advanced nano wear-resistant material accessories have a lifespan more than 20 times that of ordinary materials.

快盈VIII

DEX-400SD Performance and Advantages:快盈VIII

All three axes are equipped with AC servo motors and precision ball grinding screws, ensuring high speed, high precision, and high consistency of motion

The main control system adopts a motion control card and is programmed using a computer

The programming interface is simple and friendly, and commonly used graphics (circles, ellipses, rectangles, etc.) do not require teaching and can be directly called by inputting parameters快盈VIII

Support CAD graphic import and trajectory preview function快盈VIII

The device adopts a modular structural design for easy maintenance

The semi enclosed shell design not only facilitates operation but also improves the cleanliness of the dispensing environment

Strong load-bearing capacity and large internal space of the equipment

High speed precision dispensing operation. The fully enclosed structural design, combined with the active extension of the Y-axis loading platform and the automatic lifting of the glass door, achieves a silent effect while facilitating the retrieval and placement of products
